- Digital 2MP USB microscope with USB 2.0 output enables inspection of biological specimens, textiles, rocks, stamps, and jewelry in educational, medical, or industrial applications
- Captures still images and records and streams real-time live video on a computer
- Provides 10x-200x magnification
- Built-in eight LED light source illuminates specimens
- Table stand allows horizontal and vertical positioning of the microscope

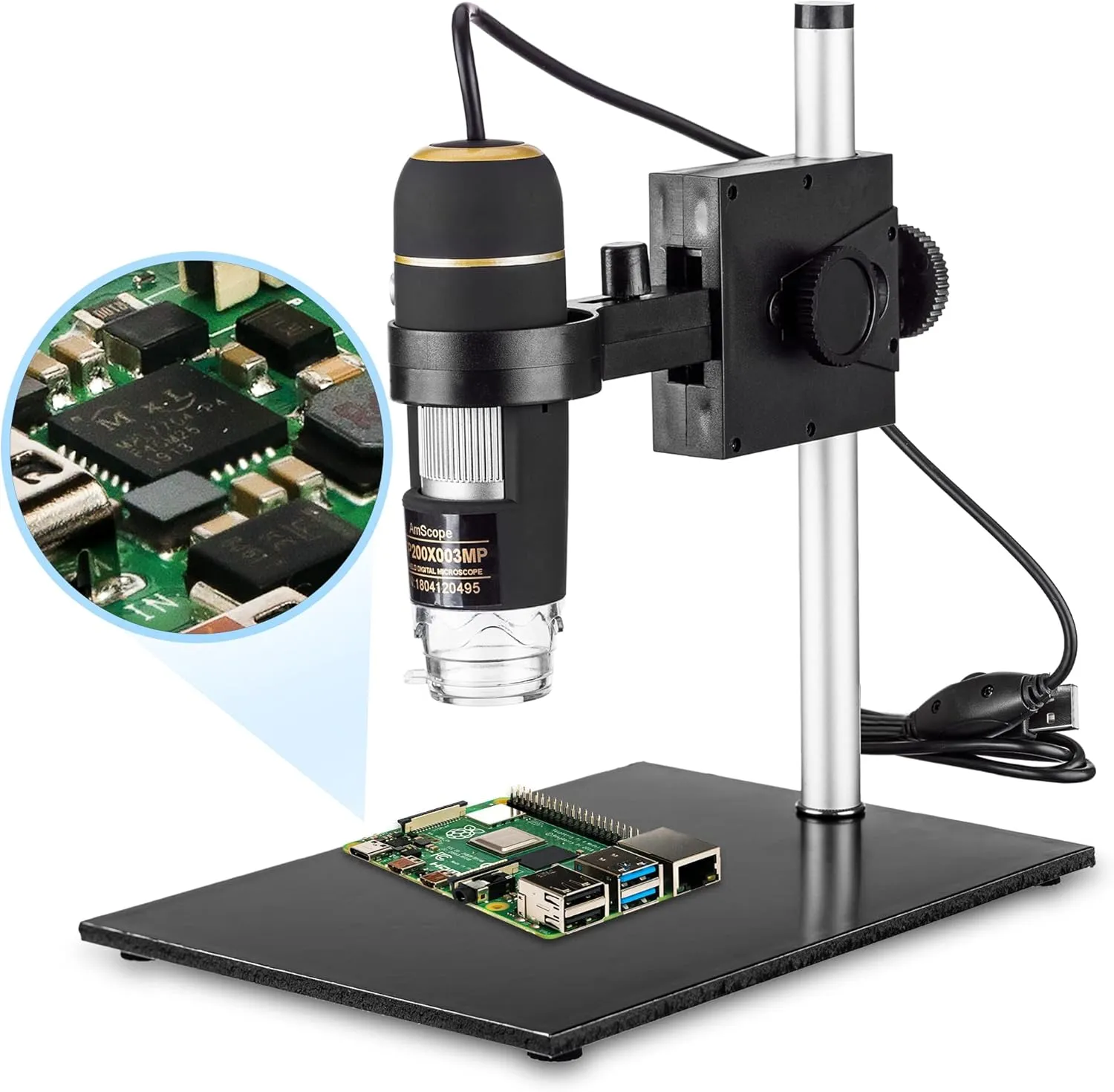

The AmScope UTP200X003MP digital 2MP USB microscope provides 10x-200x magnification, has a USB 2.0 output for displaying images and video on a computer, and includes editing software. Its built-in light source has eight LEDs to illuminate specimens. The microscope has a CMOS color sensor, and operates on USB power (cable included). The image capture and editing software provides still image and live video capture and editing capability, including measurement functions. The software is compatible with Windows XP, Vista, 7, and 8 and with Mac OS for live view and image capture only. The included table stand allows horizontal and vertical positioning of the microscope. A digital USB microscope is used in educational, medical, and industrial inspection applications where image capture, detailed records, or documentation is required.
SpecificationsMagnification range10x-200xWorking range1-9/16"Resolution2MP (1600x1200 effective pixels)Image sensorCMOS (color)Image typeStill image and video display and captureLight sourceEight built-in LEDsMicroscope standTable topPower5V DC via USB portComputer connectionUSB 2.0File formatsJPG, GIF, BMP, PNGSoftware packageImage capture and editing for Windows XP, Vista, 7, and 8; image capture for Mac OSMicroscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.
United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.
What's in the Box?
- AmScope UTP200X003MP 2MP USB microscope with table stand
- Software CD
- USB 2.0 cable
- Correction card
- Instructions
